Spray Arm Rotation and Its Effect on Cleaning Results

A dishwasher does not scrub. It sprays hot water and detergent from rotating arms, and the arms need to turn smoothly to cover every surface. When one stalls, the pattern is obvious once you know to look for it: a ring of clean dishes and a ring of dirty ones. The arms are turned by the force of the water leaving their nozzles, so anything that weakens that jet also weakens the rotation.

What poor spray arm movement looks like

Look at the result, not the machine. Plates in a specific part of the lower rack come out with baked-on film while the rest are clean. Glasses on the upper rack have a fine layer of grit, or spots form in a stripe. The tub may be wet and clean in some spots and stained in others. A dishwasher running quieter than usual can also hint at a lazy arm, because the rotation noise changes. A pattern that repeats in the same spot cycle after cycle is more telling than a single dirty load.

The pattern helps pinpoint the arm. Problems on the lower rack suggest the lower arm, while top-rack streaks point toward the middle or upper arm. See DW24XV for how multi-arm designs are structured on this 24-inch platform.

Why an arm stops turning

The most common reason has nothing to do with the machine. A tall pan handle, a long spatula or a baking sheet hangs below the rack and blocks the arm. A bowl turned upside down can tip and wedge. Next most common is a clogged nozzle. Seeds, label fragments, tiny bones and hard-water scale narrow the holes in the arm, and the jet that drives rotation weakens.

Less often the arm hub is worn, a bearing or seat is gritty, or the arm has been seated incorrectly after cleaning. A cracked arm leaks pressure and spins slowly.

A hands-on check from the door

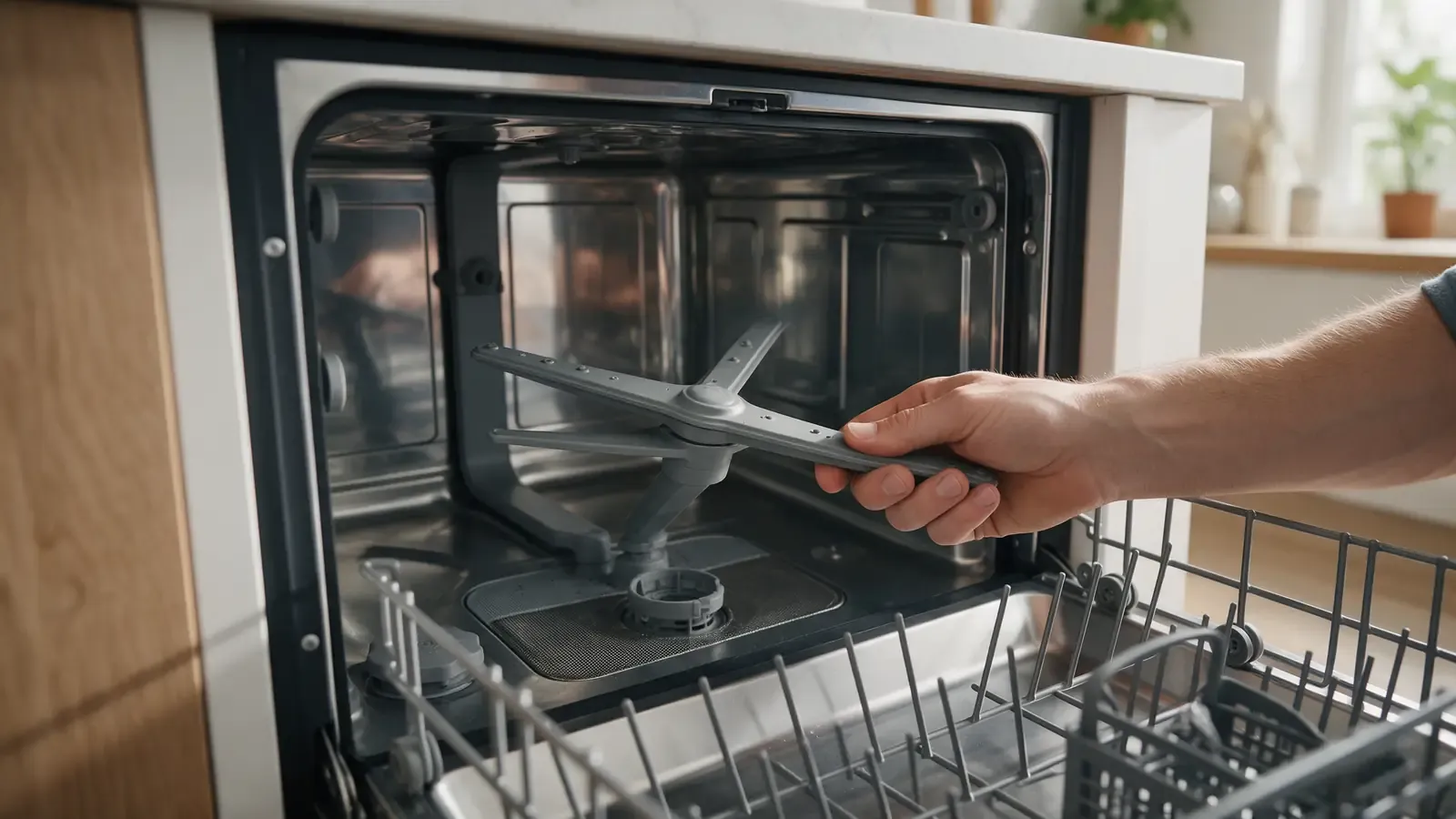

With the machine off and cool, slide out the racks and spin each arm by hand. It should turn freely and coast a little. Any grinding, wobbling or a rigid feel needs a note. Look at the holes, and shine a flashlight through them to see whether light shows in each one. Notice whether the arm stops at the same point on every turn, since a catch at one position suggests something rubbing or a damaged spot rather than a general clog.

Then run a short cycle with the racks removed, if the manual permits, and listen without opening the door during the cycle. Opening the door mid-wash stops the water and may spill hot water. Rack-free tests aren’t necessary if you can rotate the arms by hand and see them clear.

Cleaning the arm the right way

If the manual allows removing the arm, take it off following the instructions, and rinse it under warm running water. Use a toothpick or a stiff nylon brush on each nozzle, and soak it in diluted white vinegar to loosen scale if the water in your area is hard. Rinse thoroughly and reinstall until it clicks or seats as intended.

Avoid wire, knife tips and abrasive pads, since they enlarge the holes and change the spray. If the arm is attached with a nut or cap that you cannot identify, leave it and ask for guidance. The sump area beneath is covered in Accessing the Sump and Filter for Inspection.

Water quality and loading habits

Hard water leaves scale on nozzles and in the arm hub. In parts of the East Bay and South Bay where the water is harder, scale builds more quickly than in San Francisco proper, which gets softer water. Rinse aid and an occasional cleaning cycle help, though neither replaces the physical check of the nozzles.

Loading habits matter as well. Tall items belong at the sides, handles go down only where they clear the arm, and nothing should rest against the center. Overloaded racks can also sit too low, scraping the arm.

Water pressure and circulation behind the arm

An arm turns because water pushes it, and that water comes from the circulation pump. If the pump is weak or the filter below is clogged, the arm slows even when it is clean. This is why a technician checks flow and the filter along with the arm. A dishwasher that fills correctly but sprays feebly may have a restriction between the sump and the arm.

Likewise, low fill volume reduces what the pump has to move, so an inlet problem can look like an arm problem. The circulation pump is separate from the drain pump, which only empties the tub, so a dishwasher that drains normally can still spray weakly. Cleaning results are a symptom of the whole system.

Reading the tub for clues

The inside of the tub keeps a record of what the water did. A film on one side of the tub wall and clean steel on the other means spray is landing unevenly. Dried detergent residue in a corner suggests that spot never got rinsed. Mineral crust around the arm hubs tells you scale is already involved. Photograph the tub after a cycle, before wiping, and compare it with the dish pattern.

That visual record often points more directly at the cause than any description of how the machine sounded.

When it is not the arm at all

Detergent choice, a cycle that is too short for the soil, water that is too cool at the tap and an overloaded rack can all copy the pattern. Pods stuck behind a rack or a dispenser door that does not open leave a pasty film that looks like poor spraying. Test with a lightly loaded rack and a normal cycle before assuming a part is at fault. An empty rinse aid dispenser can leave spots that have nothing to do with spray.

What a technician measures

The visit includes inspecting each arm and its seat, verifying rotation with the cycle running, checking nozzle flow, examining the filter and sump for blockage and measuring fill level and pump output. If the arm shows wear at the hub or hairline cracks, it is replaced. If circulation is weak, the pump and its path are examined further.

Only parts that test as faulty are recommended, and you receive a written estimate first. The overall process is explained at Bertazzoni Dishwasher Repair.
